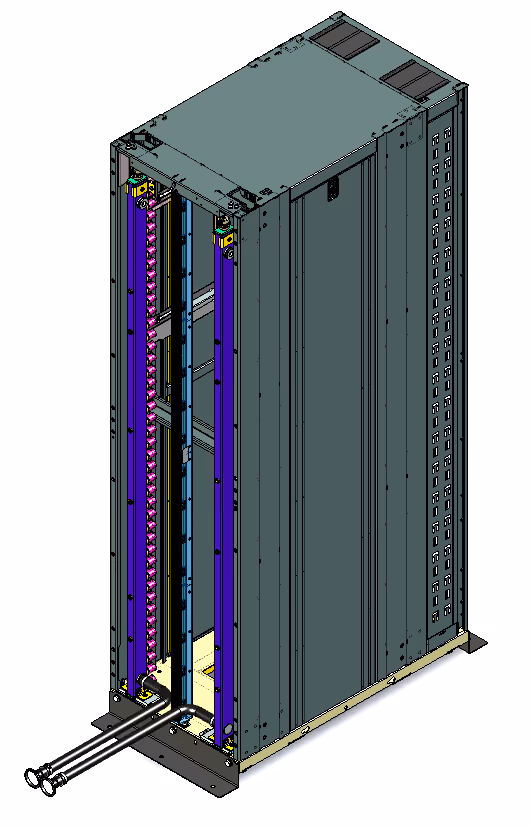

OCP ORv3 Open Rack
The OCP ORv3 Open Rack is designed to support high-density computing environments aligned with Open Compute Project standards. The rack architecture accommodates 21-inch OCP components and integrates busbar power distribution to support modern server and AI infrastructure. Its modular frame structure enables efficient installation, scalable hardware integration, and compatibility with liquid cooling systems used in advanced data center deployments.
- Static Load rated 1,600 kg.
- Dynamic Load rated 1,400 kg
- Knock down version estimate 80 sets per 40’
- Assembled version estimate 27 sets per 40’
- 44 OU/48 RU overall internal mounting space
- U numbers printed for easy equipment installation
- 48 VDC bus bar power architecture
- Overall foot print is 600 mm x 1068 mm
- Can customize to your specification.
- Overall height : 2,236 mm (no casters)
- Overall height on casters : 2,286 mm
- Overall depth : 1,068 mm
- Overall width : 600 mm
- Form factor: 44 0U / 48RU
- Net Weight 145 KG (Frame only)
- Basic Rack includes Frame, Casters, Leveling Feet, Cable Rails and 2 x support rails.
- UL 2416 Issue No.2
- CSA 22.2 No. 60950-1-07
- EIA-310E and IEC-60297-1,2 standard rack dimensions
- Five stage iron-phosphate pretreatment with textured powder coat finish, tested to 500 hours salt spray under ASTM-D610-01 and ASTM-B117
- SAPH-440 (Automobile grade) structural steel top and bottom frame
- Designed and Manufactured under ISO 9001:2008 and ISO 14001
- All materials RoHS compliant
