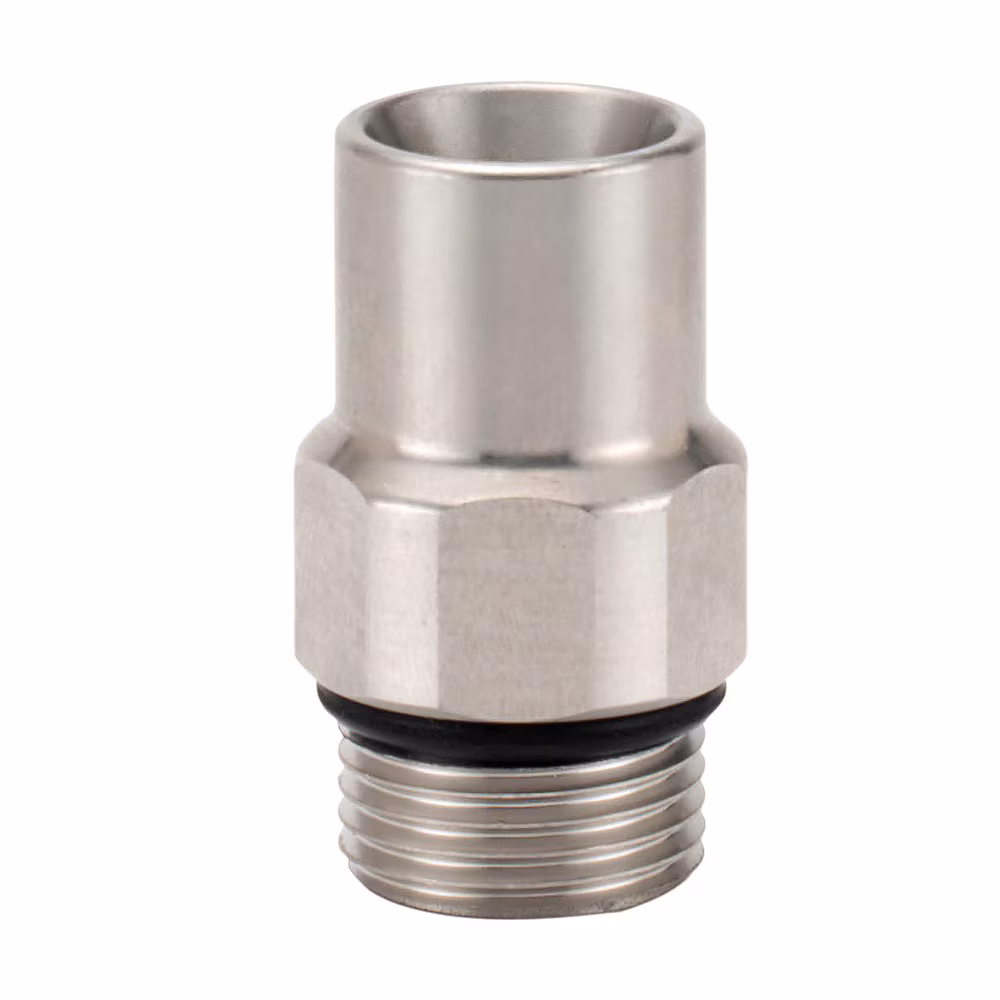

UQDBs

UQDB Series, Universal Quick Disconnect Blindmate, flat face QDs are optimized for liquid cooling applications in data centers, servers and supercomputers. UQDB is based on an Open Compute, OCP design and is Nvidia Partner Network, NPN approved.

Thanks for reaching out. We will get back to you soon.

Oops! Something went wrong while submitting the form.

Globally interchangeable with other OCP-approved UQDB manufacturers
Nvidia Partner Network, NPN approved
Flush-face valve design prevents any fluid loss and optimum protection of electrical components
End of line helium leak testing for quality assurance
Reduced pressure drop for superior energy efficiency and system performance
Manufacturing and assembly processes that reduces contamination

Application	Liquid Cooling, Thermal Management
Maximum Operating Pressure	10.3 bar, 150 psi
Maximum Operating Temperature	70 °C, 158 °F
Minimum Operating Temperature	32 °F
Product Type	Push to Connect
Valve Type	Flat Face
Maximum Flow Rate	0.55 to 4.7 gal/min (Depending on size)
Body Size	1/8", 1/4", 3/8", 1/2" inch
Body Material	Stainless Steel
Connection Type	Male UNF
Hose Inside Diameter	N/A
Seal Material	EPDM

FCC, ETL, CE, CCC, EAC, KC certified
